MPPT Solar Charge Controller reviews for Solar Lighting System

Name: MPPT Solar Charge Controller reviews for Solar Lighting System
SKU: 1005001952147907
Availability: InStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

$60.00 – $80.00

SKU: 1005001952147907 Categories: Solar Controller, Solar Equipment's Tag: MPPT solar charge controller reviews

MPPT Solar Charge Controller reviews 12V 24V LCD USB Regulator with Load Dual Timer Control for Solar Lighting System

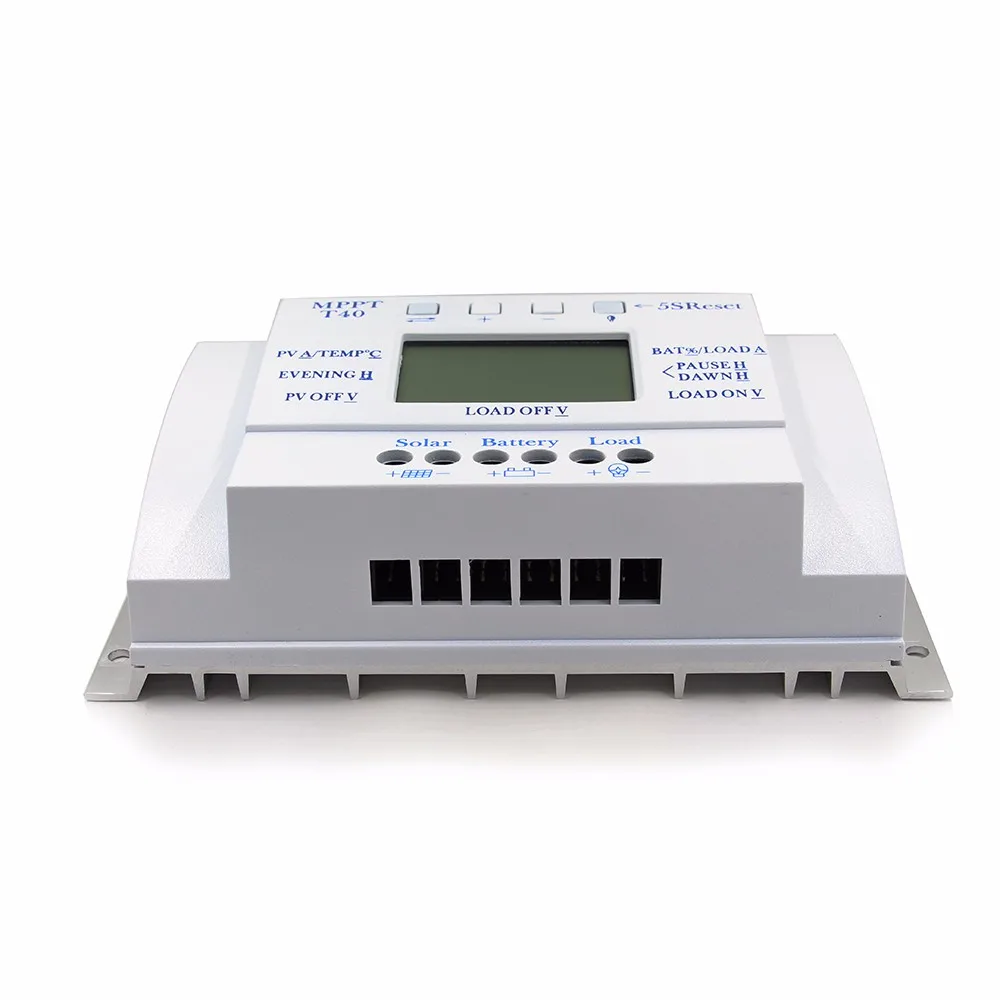

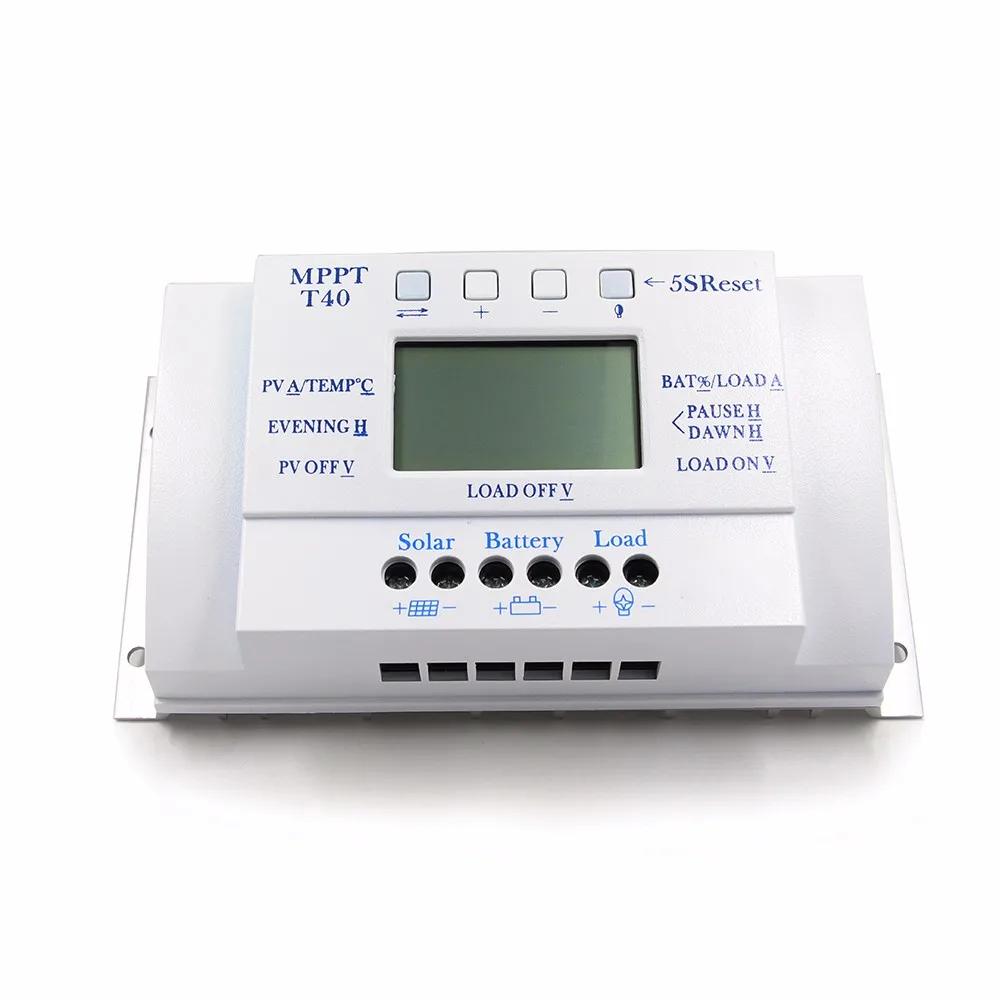

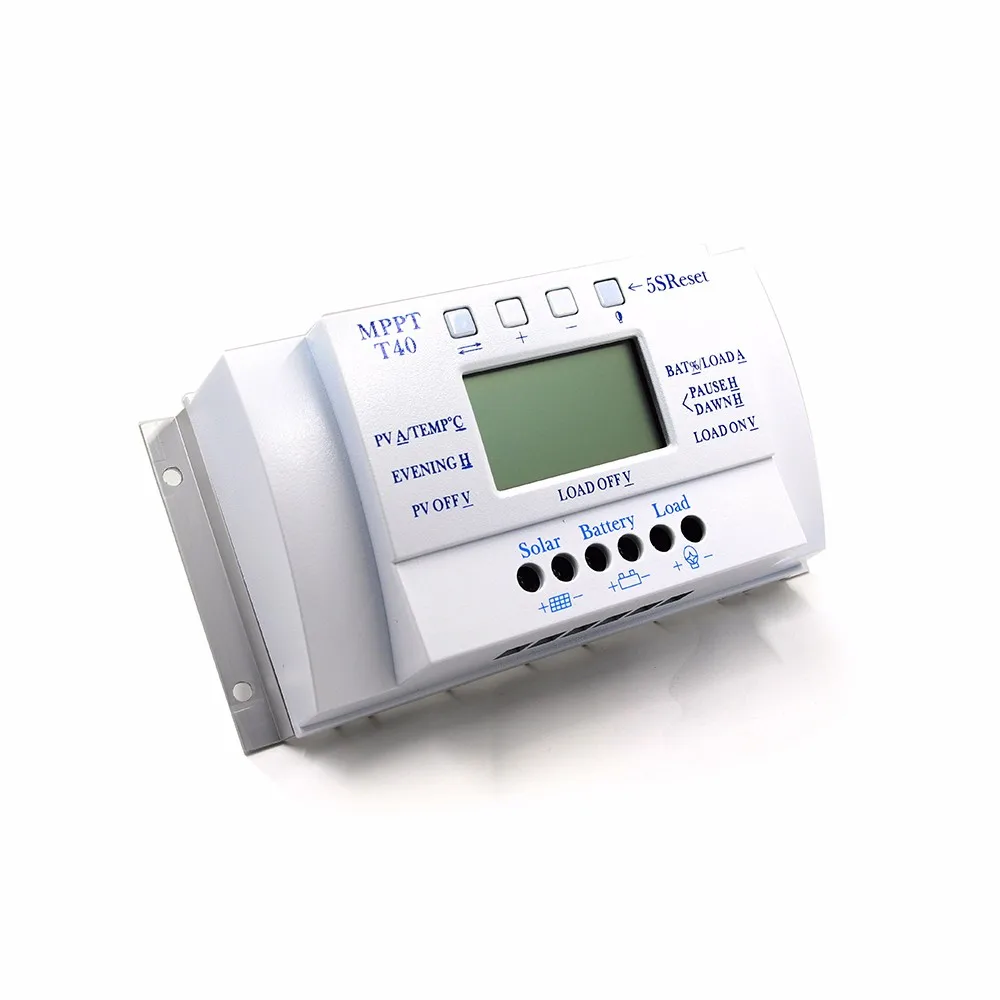

40A T40Solar Charge Controller Dual timer

The MPPT T40 is upgrade of MPPT40. It is the second generation MPPT40.The biggest difference between the two model solar controllers is that the MPPT T30 is light and dual timer control.

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time.

A:time(evening working) B:time(pause working) C:time(dawn working)

This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.

LCD screen display	Battery reverse discharge protection
Easy operation interface	Battery reverse polarity protection
MPPT+ PWM charging mode	Battery under voltage protection
Parameter user can reset Overload	Short-circuit protection
A key to restore the factory settings	USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone
A key to open and close the load	Automatic temperature compensation function

1. 1x 40A solar controller T40

2. 1x user manual

3. 1x temp sensor

Parameters / Model	T10		T20	T30	T40
Maximum power current	12A		20A	30A	40A
Installation Lin(mm2)	4mm2		8mm2	10mm2	12mm2
Installation Line(AWG)	10(AWG)		8(AWG)	7(AWG)	6(AWG)
Weight	280g		300g	475g	480g
Dimensions	143×89×46(mm)			1879761(mm)
System load loss	≤13mA
Loop Buck	≤100mV
Battery float voltage		13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection		10.6V(12V system)/21.2V(24V system)
Battery (under voltage) recovery voltage		12.6V(12V system)/25.2V(24V system)
Charge mode		MPPT+PWM MODE
Operating Temperature		-10°C~60°C
Storage Temperature		-30°C~70°C
Humidity requirements		≤90%, No condensation
Temperature compensation		-4mV/Cell/°C
Temperature Probe (built components)		NTC 100K thermistats
Maximum open circuit voltage of the solar panel		18V-24V(12V system)36V-48V(24V system)
Solar panels maximum open circuit voltage (V)		≤48V

(Cases) 12V system standard configuration

White:

Silver:

Brand Name	PowMr
Certification	CE
Origin	CN(Origin)
Model Number	T40 T40-S
is_customized	Yes
Application	Solar Working Station
Maximum Current	40A
Battery Voltage	12V 24V Auto
Max Input Power	480W(12V) 960W(24V)
Max Input Voltage	25V(12V) 50V(24V)
Installation Lin(mm2)	12mm2
Indicator	Big LCD display
Weight	475g
Dimensions	1879761(mm)
Battery Float Voltage	13.8V(12V system)/27.6V(24V system)
Battery (under voltage) protection	10.6V(12V system)/21.2V(24V system)
Battery (under voltage) recovery voltage	12.6V(12V system)/25.2V(24V system)
Charge mode	MPPT+PWM MODE
